UART

1 Function Overview

UART (Universal Asynchronous Receiver and Transmitter) is a universal asynchronous receiver/transmitter used to implement full-duplex or half-duplex data exchange between different devices.the BK7258 has three UARTs, with UART0 currently being exclusively used by the CP side (for log output, AP side is prohibited from using it). The AP side only supports the use of UART1 and UART2.

UART-Related Theoretical Introduction: UART_driver

Note

1.UART0 is exclusively reserved for CP side (for log output use, AP side is prohibited from using it)；
2.AP side is only allowed to use UART1 and UART2, and no other UARTs.

2 code path

demo path：

ap\components\bk_cli\cli_uart.c

source code path：

ap\middleware\driver\uart\uart_driver.c

3 uart related macro configuration

NAME

Description

File

value

CONFIG_UART1

UART1 Enable Configuration

ap\middleware\soc\bk7258_ap\bk7258_ap.defconfig

n

CONFIG_UART2

UART2 Enable Configuration

ap\middleware\soc\bk7258_ap\bk7258_ap.defconfig

n

CONFIG_UART_PRINT_PORT

Configure the UART port for printing log output

ap\middleware\soc\bk7258_ap\bk7258_ap.defconfig

1

CONFIG_PRINTF_BUF_SIZE

Configure the buffer size for printing log output

ap\middleware\soc\bk7258_ap\bk7258_ap.defconfig

256

CONFIG_KFIFO_SIZE

Configure the software FIFO size for UART

ap\middleware\soc\bk7258_ap\bk7258_ap.defconfig

128

CONFIG_UART_ERR_INTERRUPT

Enable UART error interrupt

ap\middleware\soc\bk7258_ap\bk7258_ap.defconfig

y

CONFIG_UART_TX_DMA

copy data from RAM to UART FIFO

ap\middleware\soc\bk7258_ap\bk7258_ap.defconfig

n

CONFIG_UART_RX_DMA

copy data from UART FIFO to RAM

ap\middleware\soc\bk7258_ap\bk7258_ap.defconfig

n

UART_RX_DMA_KFIFO_SIZE

Configure the KFIFO size for UART RX DMA

ap\middleware\soc\bk7258_ap\bk7258_ap.defconfig

128

4 UART PIN Descriptions

UART1 corresponds to uart1 on the development board, with the following hardware pins:

UART1 function

group 0

UART1_TX

GPIO0

UART1_RX

GPIO1

UART2 corresponds to uart2 on the development board, with the following hardware pins:

UART2 function

group 0

UART2_RX

GPIO40

UART2_TX

GPIO41

5 UART demo configuration

The supported commands for “demo” are as follows:

Command

Param

Description

uart_driver {init|deinit}

{init|deinit}:

init/deinit the uart resoure common

uart {id} init [baud_rate] [data_bits]

[parity] [stop_bits] [flow_ctrl]

[src_clk] [rx_dma_en] [tx_dma_en]

{id}:uart id,value range 1 ~ 2

init uart and set working parameters

{baud_rate}:uart baud rate

{data_bits}: support value range 5 ~ 8 bits

{parity}: support parity mode

{stop_bits}:the stop bits len

{flow_ctrl}: not support flow ctrl

{src_clk}:uart working clock source

{rx_dma_en}: enable uart rx dma

{tx_dma_en}: enable uart tx dma

uart_config

{id}

baud_rate {value}

{value}:support baud rate

set uart working parameters

data_bits {value}

{value}:support value range 5 ~ 8 bits

parity {value}

{value}:support parity none、 odd、 even

stop_bits {value}

{value}:support 1 or 2 bits

flow_ctrl {value}

{value}:support 0 or 1

rx_thresh {value}

{value}:support value range 0 ~ 255 bits

tx_thresh {value}

{value}:support value range 0 ~ 255 bits

rx_timeout{value}

{value}:support value range 0 ~ 3 bits

uart_int {id} {enable|disable|reg} {tx|rx}

{id}:uart id,value range 1 ~ 2

enable|disable uart tx|rx interrupt and register uart tx|rx handler

{enable|disable}:enable|disable tx|rx interrupt

{tx|rx}: register tx|rx interrupt handler

uart {id} {read|write}

{length}

{id}:uart id,value range 1 ~ 2

read specified length of data through uart

{read|write}: read|write operation

{length}: length to be read|write

Note

-1.The UART module’s clock source is 26M Hz, and the baud rate is derived from this 26M Hz clock source.；

-2.The calculation method is “divisor = (clock source value / baud rate) - 1”. The software then sets the divisor value to the UART register.；

-3.For example: If we want to set the baud rate to 115200, the divisor value is calculated as follows: (26000000 / 115200) - 1 = 224. The software sets 224 as the value for the UART register. Therefore, if we want to set a different baud rate, we only need to calculate the divisor value and set it to the UART register. (Note: The divisor value should be an integer type)

6 UART demo Command Line Demonstration

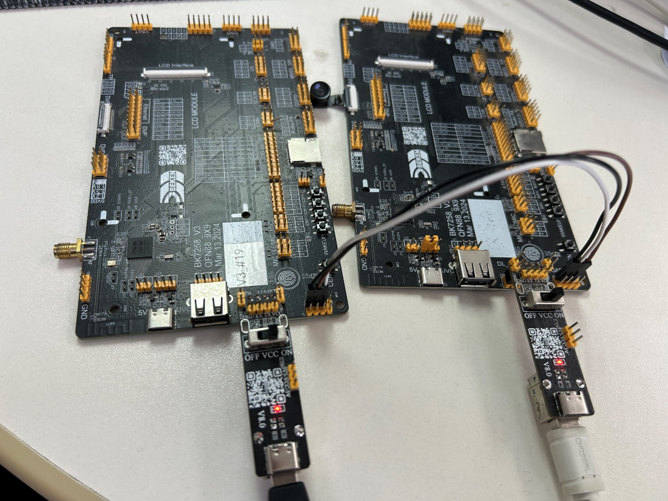

Use two BK7258 development boards, connect them as shown in the diagram below (it is recommended to share a common ground between the two boards to avoid inaccurate data sampling)：

Start entering CLI commands for testing:

Start the development boards and enter the initialization command separately for each of the two boards:

board1：(Initialization command)： cpu1 uart 1 init 115200 3 0 0 0 1 0 0

[14:08:15.698]发→◇cpu1 uart 1 init 115200 3 0 0 0 1 0 0
[14:08:15.713]收←◆cpu1 uart 1 init 115200 3 0 0 0 1 0 0
os:I(378658):create shell_handle, tcb=28078f90, stack=[28077368-28078f68:7168], prio=5
$
$cpu1:cli:I(378522):uart init, uart_id=1

board1：(use default config)： cpu1 uart 1 init

[14:07:04.565]发→◇cpu1 uart 1 init
[14:07:04.565]收←◆cpu1 uart 1 init
os:I(307518):create shell_handle, tcb=28078f90, stack=[28077368-28078f68:7168], prio=5
$cpu1:cli:E(307382):invalid argc,use default config
cpu1:cli:I(307382):uart init, uart_id=1

board2：(Alternatively, you can use the following command:)： cpu1 uart 1 init 115200 3 0 0 0 1 0 0

[14:10:26.530]发→◇cpu1 uart 1 init 115200 3 0 0 0 1 0 0
[14:10:26.546]收←◆cpu1 uart 1 init 115200 3 0 0 0 1 0 0
os:I(455910):create shell_handle, tcb=28078f90, stack=[28077368-28078f68:7168], prio=5
$
$cpu1:cli:I(455704):uart init, uart_id=1

board2：(use default config) cpu1 uart 1 init

[14:10:22.823]发→◇cpu1 uart 1 init
[14:10:22.839]收←◆cpu1 uart 1 init
os:I(452206):create shell_handle, tcb=28078f90, stack=[28077368-28078f68:7168], prio=5
$
$cpu1:cli:E(452000):invalid argc,use default config
cpu1:cli:I(452002):uart init, uart_id=1

C） board1 send data，board2 receive data；

board1： cpu1 uart 1 write 10 //board1 send data；(In this case, the data content to be sent has been automatically assigned in the test code.)

[14:22:29.926]发→◇cpu1 uart 1 write 10
[14:22:29.941]收←◆cpu1 uart 1 write 10
os:I(15742):create shell_handle, tcb=28078f00, stack=[280772d8-28078ed8:7168], prio=5
$cpu1:cli:I(15608):uart write, uart_id=1, data_len:10

board2： cpu1 uart 1 read 10 0 //board2 receive data

[14:22:32.722]发→◇cpu1 uart 1 read 10 0
[14:22:32.737]收←◆cpu1 uart 1 read 10 0
os:I(19678):create shell_handle, tcb=28078f00, stack=[280772d8-28078ed8:7168], prio=5
$
$cpu1:cli:I(19546):uart read, uart_id=1, time_out:0 data_len:10
cpu1:cli:I(19546):recv_buffer[0]=0x0
cpu1:cli:I(19546):recv_buffer[1]=0x1
cpu1:cli:I(19546):recv_buffer[2]=0x2
cpu1:cli:I(19546):recv_buffer[3]=0x3
cpu1:cli:I(19546):recv_buffer[4]=0x4
cpu1:cli:I(19546):recv_buffer[5]=0x5
cpu1:cli:I(19546):recv_buffer[6]=0x6
cpu1:cli:I(19546):recv_buffer[7]=0x7
cpu1:cli:I(19546):recv_buffer[8]=0x8
cpu1:cli:I(19546):recv_buffer[9]=0x9

D） board2 send data，board1 receive data；

board2： cpu1 uart 1 write 20 //board2 send data

[14:25:43.416]发→◇cpu1 uart 1 write 20
[14:25:43.416]收←◆cpu1 uart 1 write 20
os:I(210366):create shell_handle, tcb=28078f90, stack=[28077368-28078f68:7168], prio=5
$
$cpu1:cli:I(210232):uart write, uart_id=1, data_len:20

board1： cpu1 uart 1 read 20 0 //board2 receive data

[14:25:48.436]发→◇cpu1 uart 1 read 20 0
[14:25:48.436]收←◆cpu1 uart 1 read 20 0
os:I(214244):create shell_handle, tcb=28078f90, stack=[28077368-28078f68:7168], prio=5
$
$cpu1:cli:I(214110):uart read, uart_id=1, time_out:0 data_len:20
cpu1:cli:I(214110):recv_buffer[0]=0x0
cpu1:cli:I(214110):recv_buffer[1]=0x1
cpu1:cli:I(214110):recv_buffer[2]=0x2
cpu1:cli:I(214110):recv_buffer[3]=0x3
cpu1:cli:I(214110):recv_buffer[4]=0x4
cpu1:cli:I(214110):recv_buffer[5]=0x5
cpu1:cli:I(214110):recv_buffer[6]=0x6
cpu1:cli:I(214110):recv_buffer[7]=0x7
cpu1:cli:I(214110):recv_buffer[8]=0x8
cpu1:cli:I(214110):recv_buffer[9]=0x9
cpu1:cli:I(214110):recv_buffer[10]=0xa
cpu1:cli:I(214110):recv_buffer[11]=0xb
cpu1:cli:I(214110):recv_buffer[12]=0xc
cpu1:cli:I(214110):recv_buffer[13]=0xd
cpu1:cli:I(214110):recv_buffer[14]=0xe
cpu1:cli:I(214110):recv_buffer[15]=0xf
cpu1:cli:I(214110):recv_buffer[16]=0x10
cpu1:cli:I(214110):recv_buffer[17]=0x11
cpu1:cli:I(214110):recv_buffer[18]=0x12
cpu1:cli:I(214110):recv_buffer[19]=0x13
