Doorbell_cs2_ab_4M
1. Introduction
This project is a demo of a USB camera door lock, supporting end-to-end (BK7258 device) to mobile app demonstrations. By default, it supports Shangyun for network transmission.
1.1 Specifications
- Hardware configuration:
Core board, BK7258_QFN68_8X8_V1
Display adapter board, BK7258_LCD_interface_V3.0
SPEAKER small board, BK_Module_Speaker_V1.1
PSRAM 4M
- Support, UVC
Reference peripherals, UVC MAX resolution of 864 * 480
Support, UAC
Support, TCP LAN image transmission
Support UDP LAN image transmission
Support, Shangyun, P2P image transfer
- Support, LCD RGB/MCU I8080 display
Reference peripherals, ST7701SN, 480 * 854 RGB LCD
RGB565/RGB888
- Support, hardware/software rotation
0°, 90°, 180°, 270°
Support, onboard speaker
- Support, MJPEG hardware decoding
YUV422
- Support, MJPEG software decoding
YUV420
Support, H264 hardware decoding
- Support, OSD display
ARGB888[PNG]
Custom Font
1.2 Path
<bk_avdk source code path>/projects/thirdparty/doorbell_cs2_ab_4M
2. Framework diagram
Please refer to Framework diagram
3. Configuration
Please refer to Configuration
3.1 Differences
The difference between doorbell_cs2_ab_4M and doorbell_cs2_8M is that the former does not support DVP cameras and does not support the on-board microphone.
Additionally, compared to doorbell_cs2_8M, doorbell_cs2_ab_4M supports AB partitions in addition to the difference in PSRAM size, and its partition table differs from that of the non-AB partition version.

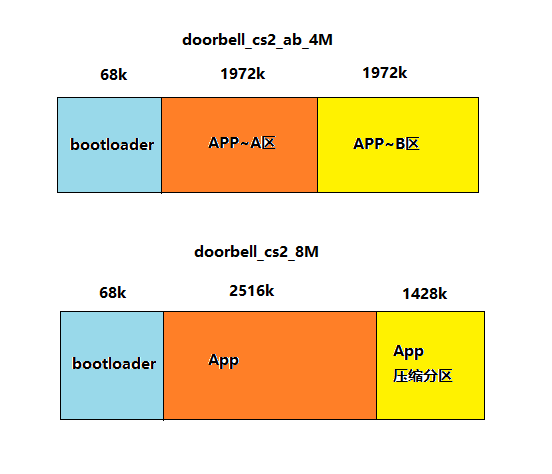

Figure 1. Main partition differences between ab_4M and cs2_8M.
The allocation of PSRAM with different sizes is shown in the following table. The config file needs to be modified, with the file path as follows:
thirdparty/doorbell_cs2_ab_4M/config/bk7258/config
thirdparty/doorbell_cs2_ab_4M/config/bk7258_cp1/config
thirdparty/doorbell_cs2_ab_4M/config/bk7258_cp2/config
Below are the differences in CONFIG parameters between doorbell_cs2_8M and doorbell_cs2_ab_4M:
project
doorbell_cs2_8M
doorbell_cs2_ab_4M
CONFIG_PSRAM_MEM_SLAB_USER_SIZE
102400
0
CONFIG_PSRAM_MEM_SLAB_AUDIO_SIZE
102400
51200
CONFIG_PSRAM_MEM_SLAB_ENCODE_SIZE
1433600
946176
CONFIG_PSRAM_MEM_SLAB_DISPLAY_SIZE
5701632
2490368
CONFIG_MEDIA_PSRAM_SIZE_4M
N
Y
CONFIG_BUCK_ANALOG_DISABLE
N
Y
CONFIG_PSRAM_W955D8MKY_5J
N
Y
CONFIG_PSRAM_APS6408L_O
N
N
CONFIG_CPU0_SPE_RAM_SIZE
0X56000
0X5E000
CONFIG_CPU1_APP_RAM_SIZE
0X3F000
0X38000
CONFIG_CPU2_APP_RAM_SIZE
0XB000
0XA000
CONFIG_PSRAM_HEAP_BASE
0x60700000
0x60354000
CONFIG_PSRAM_HEAP_SIZE
0x80000
0x7D000
CONFIG_PSRAM_HEAP_CPU0_BASE_ADDER
0x60700000
0x60354000
CONFIG_H264_P_FRAME_CNT
5
3
CONFIG_ALI_MQTT
N
N
The flow is as shown in the following diagram:
Figure 1. doorbell_cs2_4M decode process
Figure 2. doorbell_cs2_8M decode process
The main differences in the process are as shown in the following table:
project |
decode process |
doorbell_cs2_4M |
Firstly, attempt to obtain the YUV image, and continue with the decoding only after the allocation is successful. The LCD display triggers the next image capture process immediately after completion. |
doorbell_cs2_ab_4M |
Similar to doorbell_cs2_4M |
doorbell_cs2_8M |
Directly decode, and upon failure to obtain the YUV image, immediately release the JPEG and wait for the next frame of JPEG. |
4. Demonstration explanation
Please visit APP Usage Document
Demo result: During runtime, UVC, LCD, and AUDIO will be activated. The LCD will display UVC and output JPEG (864X480) images that have been decoded and rotated 90 degrees before being displayed on the LCD (480X854), After decoding, the YUV is encoded with H264 and transmitted to the mobile phone for display via WIFI (864X480).
Hint
If you do not have cloud account permissions, you can use debug mode to set the local area network TCP image transmission method.
5. Code explanation
Please refer to Code explanation
6. Porting Instructions
For the media module, the biggest difference between the 4M and 8M configurations is the reduction in PSRAM size, which in turn reduces the number of internal buffer images, as shown in the following table:
project
YUV images
JPEG images
H264 images
doorbell_cs2_4M
3
4
4
doorbell_cs2_ab_4M
3
4
4
doorbell_cs2_8M
5
4
8
To modify the project from 8M FLASH + 8M PSRAM to 4M FLASH + 4M PSRAM, follow the steps below:
Step 1:
Merge the platform code into the project.
Synchronize modifications according to the patch, with the patch commit title being “adapter for new 4+4 psram of W955D8MKY”,
There are a total of four commits, and the code directory and involved files are as shown in the following table:
Code directory
Related Files
middleware
driver/pwr_clk/Kconfig
soc/bk7258/hal/sys_pm_hal.c
soc/common/hal/include/psram_hal.h
soc/common/hal/psram_hal.c
tools/build_tools
part_table_tools/otherScript/special_project_deal.py
bk_idk/components/part_table
CMakeLists.txt
part_table.mk
projects
thirdparty/doorbell_cs2_ab_4M/CMakeLists.txt
thirdparty/doorbell_cs2_ab_4M/config/bk7258_cp1/config
thirdparty/doorbell_cs2_ab_4M/config/bk7258_cp2/config
thirdparty/doorbell_cs2_ab_4M/config/bk7258/ab_position_independent.csv
thirdparty/doorbell_cs2_ab_4M/config/bk7258/bk7258_partitions.csv
thirdparty/doorbell_cs2_ab_4M/config/bk7258/config
thirdparty/doorbell_cs2_ab_4M/config/bk7258/configuration.json
thirdparty/doorbell_cs2_ab_4M/config/bk7258/configurationab.json
thirdparty/doorbell_cs2_ab_4M/config/bk7258/partitions.csv
thirdparty/doorbell_cs2_ab_4M/config/ota_rbl.config
thirdparty/doorbell_cs2_ab_4M/main/app_main.c
thirdparty/doorbell_cs2_ab_4M/main/CMakeLists.txt
thirdparty/doorbell_cs2_ab_4M/main/Kconfig.projbuild
thirdparty/doorbell_cs2_ab_4M/main/vendor_flash.c
thirdparty/doorbell_cs2_ab_4M/main/vendor_flash_partition.h
thirdparty/doorbell_cs2_ab_4M/pj_config.mk
thirdparty/doorbell_cs2_ab_4M/README.md
The major modification points are as follows:
Code directory
Related Files
driver/pwr_clk/Kconfig
Add the BUCK_ANALOG_DISABLE macro control to disable the analog BUCK.
soc/bk7258/hal/sys_pm_hal.c
The actual code to configure and disable the analog BUCK
soc/common/hal/include/psram_hal.h
Add a new configuration mode and ID information for 4M PSRAM
soc/common/hal/psram_hal.c
Implement the initialization process for 4M PSRAM
part_table_tools/otherScript/special_project_deal.py
Introduce the doorbell_cs2_ab_4M project compilation information
CMakeLists.txt
part_table.mk
Introduce the doorbell_cs2_ab_4M project
Introduce the doorbell_cs2_ab_4M project compilation information
thirdparty/doorbell_cs2_ab_4M/config/bk7258_cp1/config
thirdparty/doorbell_cs2_ab_4M/config/bk7258_cp2/config
Add the macro controls used by CPU1 in the doorbell_cs2_ab_4M project
Add the macro controls used by CPU2 in the doorbell_cs2_ab_4M project
thirdparty/doorbell_cs2_4M/config/bk7258/bk7258_partitions.csv
Modify the FLASH space allocation to 4M.
Step 2:
Synchronize the modifications according to the patch. The patch’s commit title is “PSRAM configuration for image transmission-related buffers when the size is 4M.”
There are three commits in total, and the code directory and involved files are as shown in the following table:
Code Directory
Involved Files
components
display_service/src/lcd_display_service.c
media_utils/src/psram_mem_slab.c
multimedia/comm/frame_buffer.c
multimedia/Kconfig
multimedia/pipeline/h264_encode_pipeline.c
multimedia/pipeline/h264_encode_pipeline.c
multimedia/pipeline/jpeg_get_pipeline.c
bk_idk/components/part_table
CMakeLists.txt
part_table.mk
Key modification points are as shown in the following table:
Involved Files
Key modification points
display_service/src/lcd_display_service.c
Retrieve JPEG image immediately after the display is complete
media_utils/src/psram_mem_slab.c
Prevent circular search in the buffer
multimedia/comm/frame_buffer.c
Reduce the number of internal image buffers
multimedia/Kconfig
Enable the macro CONFIG_MEDIA_PSRAM_SIZE_4M
multimedia/pipeline/h264_encode_pipeline.c
multimedia/pipeline/h264_encode_pipeline.c
multimedia/pipeline/jpeg_get_pipeline.c
Modify the pipeline flow
Reduce the impact of YUV image resizing on the frame rate of the software decoding
CMakeLists.txt
part_table.mk
add doorbell_cs2_ab_4M project
