Introduction to Software Mechanisms and Interfaces of the Vendor

[zh_CN]

Important

This part only provides a design reference for users to pass custom parameters and control, and demonstrates the design effect with LED lights. Users can completely design the interface for the Vendor part themselves. The format in this demo is intended for use in conjunction with the APP internally, and it is not recommended for users to make modifications.

Software Mechanisms in the Vendor

The software mechanisms in the Vendor section are divided into the following two types:

• External query event mechanism

• Internal status setting mechanism

External query event mechanism

The External Query Event Mechanism, as the name implies, refers to users accessing a specific member within the BK WIFI MESH network module through external devices, and configuring the Vendor part through the Vendor field in the external message area. Here, the external devices include but are not limited to Android devices, iOS devices, and web pages, which access it through various methods such as wireless, wired, and serial ports.

Note

The external message specifies the information exchange format between the external devices and the connected nodes.

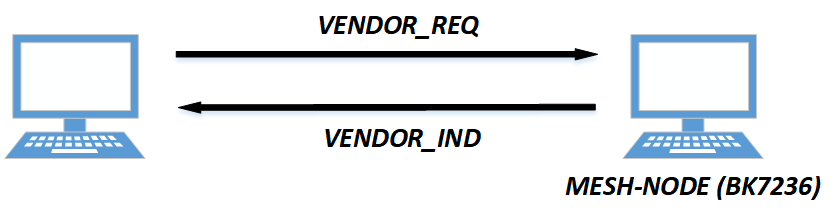

The specific message interaction diagram is roughly as follows:

The interaction between mesh nodes and external devices.

Of which:

• Vendor Request:

  The “Vendor Request” command is issued by a user through an external device (external_device) to send the desired configuration information to a node it is connected to, which then forwards it to the target node.

• Vendor Indication:

  The Vendor Indication command is issued by a node that has completed the configuration, forwarding the completed information to the external device connected through an external interface to notify the user of the execution results and effects of the IND corresponding to the request.

Format of the Vendor field in the external message area

The Vendor field in the external message area is the only way for users to interact with the Vendor part when using external devices, so the format of the Vendor field needs to be defined. The following diagram shows the defined format of the Vendor field:

Vendor field format

Of which:

Vendor field format	Length	Explanation
Vendor Length	2	The entire length of the Vendor field, excluding itself.
Vendor Bitmap	1	A map indicating the content carried by the entire vendor, the specific content is shown in the following figure.
Vendor Bitmap0 Content	M0	The first section of text content Vendorized by the Vendorer, length is variable.
…		…
Vendor Bitmap7 Content	M7	The 8th section of text content Vendorized by the Vendorer, length is variable.

Note

The type of Vendor Length is u16, therefore the length of M0+…+M7 should not exceed 65,574 bytes!

Vendor Bitmap field format

Vendor Bitmap field format

On the Vendor Bitmap field, currently, there are 8 Vendor requirements provided for vendors, with each bit corresponding to the validity of the bitmapN Content following it.

1. Bitmap0

   • Bitmap0 is currently being used in the LED tricolor light engineering project. If there is any interaction involving the LED tricolor lights, this bit should be set to 1.

2. Bitmap1

   • Bitmap1 is currently being used for OTA upgrades.

3. Bitmap2

   • Bitmap2 is currently used in LED PWM engineering. If interaction with the LED PWM engineering is involved, this bit needs to be set to 1.

4. Bitmap3

   • Reserved, Vendorizable by the user

5. Bitmap4

   • Reserved, Vendorizable by the user

6. Bitmap5

   • Reserved, Vendorizable by the user

7. Bitmap6

   • Reserved, Vendorizable by the user

8. Bitmap7

   • Reserved, Vendorizable by the user

Internal state setting mechanism

The internal status setting mechanism is driven by the SDK internally through the API interfaces and corresponding events to control the different effects of the LED. The software flowchart is as follows:

Mesh node and internal message interaction mechanism of the SDK

Of which：

• SDK:

  The “SDK” on the diagram refers to any location within the SDK, meaning that any location within the SDK can be controlled to manipulate the LED by calling the Vendor API.

• Vendor API:

  The Vendor API is a wrapped middleware, so the SDK doesn’t need to know how the Vendor handles internally, it just needs to pass in the specified parameters and accept the output.

• LED Func:

  “LED Func” refers specifically to the vendor’s specific execution function, in the context of LED, it denotes the specific form of LED-related operation functions (get/set/inform).

The following table lists the internal messages currently in use:

Enum	Explanation
NODE_POWER_ON	Node Power On
NODE_START_NET	Node Start mesh netting
NODE_NET_FAIL	mesh netting failed
NODE_NET_LAYER	Color configuration based on hierarchy, SDK default, see the table below.
NODE_BREAKDOWN	Node Failure
NODE_REVOVER	Node Recover
NODE_LAYER_CHANGE	Change node layer
NODE_STOP	Node Stop

The API encapsulated by the Vendor field

When setting up external devices and obtaining vendor information, a unified API is required to mount onto the global pointer within the SDK. Therefore, the following API interface format is provided here:

Header File

• bk_mesh_vendor.h

Functions

void bk_mesh_set_vendor_info(uint8_t *vendor_ptr)

APP set vendor info.

Parameters

• vendor_ptr – vendor_ptr is the pointer formatted by Vendor format,it contains the vendor info

• type – type is not use, the parameter is retained to align with the global variable function pointer

• layer – layer is not use, the parameter is retained to align with the global variable function pointer

Returns

• none

uint8_t *bk_mesh_get_vendor_info(uint16_t *len, uint8_t *vendor_ptr)

APP get vendor info.

Parameters

• vendor_ptr – vendor_ptr is the pointer of request vendor info

• len – len is used for BK MESH NET to used to form a reply frame

Returns

• reply frame head ptr

void bk_mesh_inform_vendor_info(uint8_t type, uint8_t layer)

SDK set vendor info through specified events.

Parameters

• type – type is the event type

• layer – layer is the specified layer.

Returns

• none

void bk_mesh_vendor_info_init(void)

vendor init.

Returns

• none

• set vendor: The function interface does not return a value, it accepts a string pointer passed in the aforementioned format, and the function internally needs to parse and set the pointer, without the need to return the setting result.

• get vendor: The function interface returns a u8* value to indicate the query results, formatted according to the vendor format mentioned above (including length).

  It accepts two pointers: a u16* pointer for SDK interface processing, which is unrelated to the external device, and a u8* vendor_ptr that is the part of the external device that wants to be queried (formatted according to the aforementioned vendor format).

• vendor inform: Based on the events and levels configured in the SDK, implement different vendor functionalities.

Note

If the user needs to implement these three interfaces themselves, after completion, the functions need to be mounted onto the global variable, which can be achieved in the way shown in the following figure:

set/get/inform vendor Register

In addition to the encapsulated API, the vendor part also requires a global structure to oversee the configuration and reading of the Vendor throughout the SDK’s operation period. The public structure is as follows:

Header File

• bk_mesh_vendor_api.h

Structures

struct bk_mesh_vendor_info

Public Members

u16 vendor_len

vendor_len

u8 vendor_bitmap

show SDK support capabilities,it will set when init

The user only needs to fill in the function of their self-writted Vendor Func as the input parameter for the aforementioned function.

Additionally, according to the current implementation of the SDK, a global structure for information configuration and reading will be placed here in different projects, as shown in the figure below:

The position of the vendor’s engineering within the vendor structure.

For the implementation of the structure g_vendor_info, its usage throughout the entire SDK lifecycle is roughly as follows:

1. Initializion

   • It is necessary to initialize the vendor section during mesh initialization, the sooner the better, to prevent some startup actions that may be desired.

2. Set own abilities.

   • In the initialization, based on the differences of projects, set the capability of g_vendor_info.bitmap according to its own support.

3. set vendor

   • After receiving the “set vendor” message, the stored capabilities in g_vendor_info.bitmap need to be compared. The operation should continue only if they are equal, and the set value should be stored in the corresponding structure of the project in g_vendor_info. If they are different, return.

4. get vendor

   • Upon receiving the “get vendor” message, the capabilities stored in the g_vendor_info.bitmap need to be compared. The operation should continue only if they are equal, and the value should be read from the corresponding structure in g_vendor_info and returned from the project. If they are different, return NULL.

5. inform vendor

   • After sending the “inform vendor” message, it is necessary to match the event with the pre-set vendor value, and then store the set value in the corresponding structure in the g_vendor_info for the project. If they differ, return.

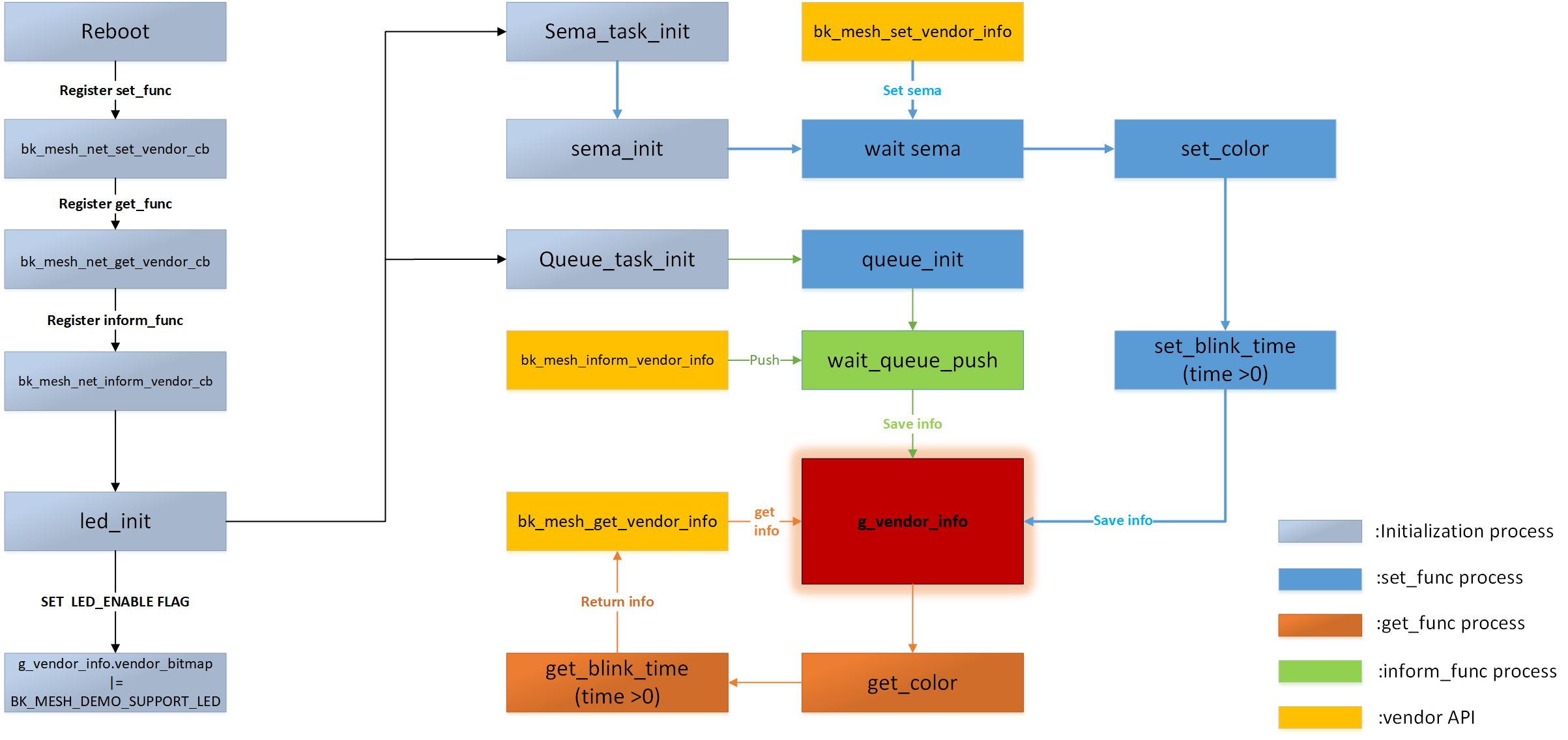

Vendor logic diagram

The vendor software logic diagram is as follows:

Vendor logic diagram
