JPEG ENCODE SW

[English]

1.JPEG ENCODE SW FLOW

The JPEG software encoding flow is as follows:

  1. Input data format convert(This step is optional:it is necessary to convert input data format if it is not YVYU422);

  2. Initialization /apply inner encoding buffer/image output buffer;

  3. Fill the JPEG header;

  4. excute DCT/quantization/huffman coding with 16x8 block size,fill the compressed bits to output buffer;

  5. repeat step 4 until error or end of encoding;

jpeg_encode sw

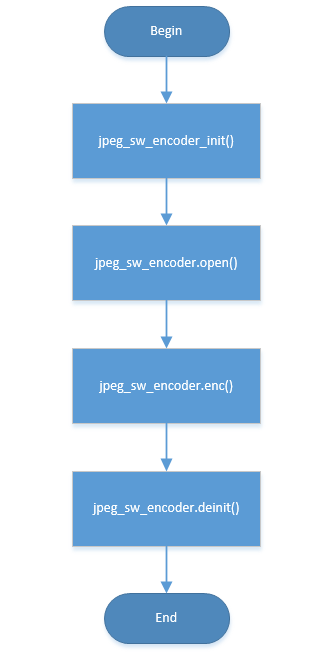

Figure 1. jpeg soft encode process

2.Memory requirement

JPEG software encoding thread need less than 3K bytes stack,other buffers and description of them is as follows:

  1. one 512bytes inner buffer to save 16x8 block output compressed bits;

  2. one 64k bytes buffer as image output buffer(This buffer size is modifiable according to the requirement)

3.JPEG softeware API usage

  1. call jpeg_sw_encoder_init ,initialize JPEG software encoding module/register callback functions like:open/enc/reset/deinit;

  2. call jpeg_sw_encoder.open ,initialize codec inner parameters /apply inner buffer;

  3. call jpeg_sw_encoder.enc ,excute JPEG software encoding;

  4. call jpeg_sw_encoder.deinit ,release inner buffer/close JPEG software encoder;

API Reference API Reference :

4.JPEG SW encoding example

See jpeg_sw_enc_test.c for details
