Display APIs

LCD Display Interface

The BK LCD Display Driver supports following interfaces:

i8080 LCD interface

项目中使用的屏幕Driving IC 为ST7796S.

8080 接口的数据传输为8位

接口支持的数据为RGB565

RGB interface

项目中支持的屏幕有Driving IC ST7282，HX8282, GC9503V.

接口支持的数据包括RGB565,YUYV,UYVY,YYUV,UVYY,VUYY

LCD API Categories

LCD 8080 Config

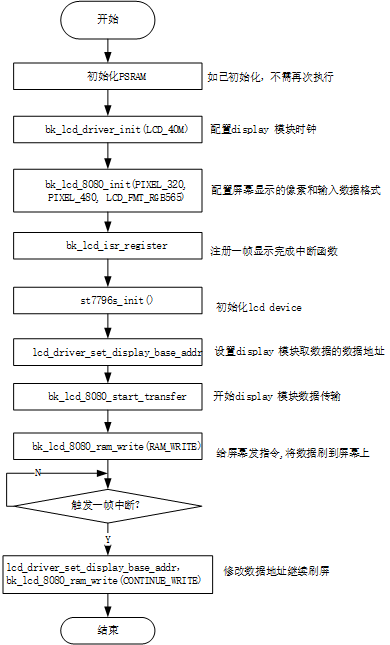

880 lcd Overview — Figure 1. 8080 lcd config flow

LCD RGB Config

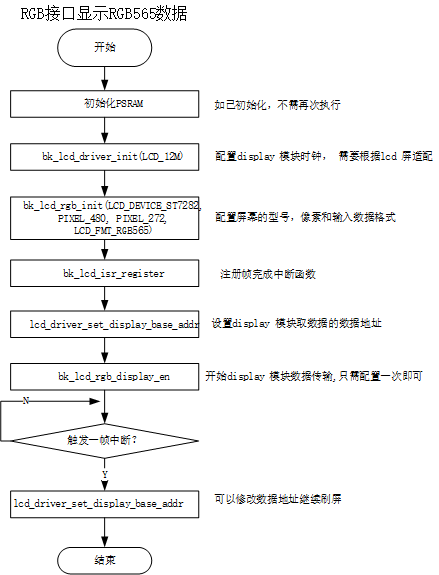

rgb lcd Overview — Figure 2. rgb lcd config flow

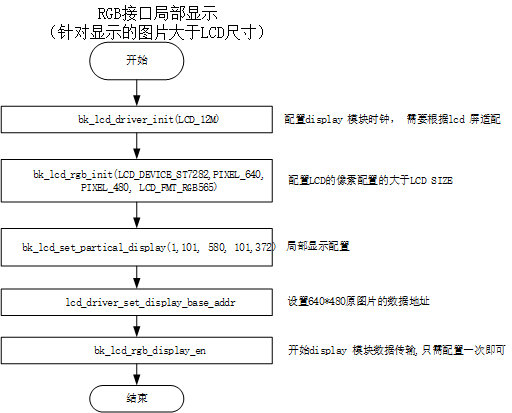

LCD parcical display

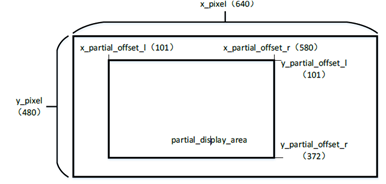

局部显示参数配置

API Reference

Header File

lcd.h

Functions

void bk_lcd_set_devices_list(const lcd_device_t **list, uint16_t size)

LCD API.

This API set LCD device list

返回

void

bk_err_t bk_lcd_driver_init(lcd_clk_t clk)

This API select LCD module clk source.

open lcd sys interrupt/clk enable

BK_OK: succeed

others: other errors.

返回

bk_err_t bk_lcd_driver_deinit(void)

close lcd sys interrupt/clk enable

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_8080_init(const lcd_device_t *device)

This API init the 8080 lcd interface.

Set lcd display mode is 8080 interface
init 8080 lcd gpio
enable 8080 display -enable 8080 end of frame interrupt
if you want enable start of frame interrupt, please use API bk_lcd_8080_int_enable

参数

- – lcd_device_t

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_8080_deinit(void)

8080 lcd interface reg deinit

This API reset all lcd reg include power
close 8080 lcd enable and display
reset x pixel and y pixel zero
unregister lcd isr

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_8080_start_transfer(bool start)

This API config 8080 lcd interrupt.

This API start mcu 8080 lcd transfer data to display

Attention: 8080 end of frame int is open in API bk_lcd_8080_init

参数

- – is_sof_en enable start of frame interrupt
- is_eof_en enable end of frame interrupt
start_transfer –
- 1:data start transfer to lcd display on;
- 0:stop transfer

返回

BK_OK: succeed
others: other errors.

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_rgb_deinit(void)

rgb lcd interface reg deinit

This API reset all lcd reg include power
close rgb lcd enable and display
reset x pixel and y pixel zero
unregister lcd isr

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_rgb_display_en(bool en)

enable rgb lcd display

参数

bool – en

1: enable rgb display
0: disable rgb display

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_isr_register(lcd_isr_t lcd_isr)

This API config rgb lcd interrupt.

This API register lcd isr, user should check int status in isr function, and clear status

Attention: rgb end of frame int is open in API bk_lcd_rgb_init

参数

- – is_sof_en enable start of frame interrupt
- is_eof_en enable end of frame interrupt
- – isr: isr function

返回

BK_OK: succeed
others: other errors.

返回

BK_OK: succeed
others: other errors.

uint32_t bk_lcd_int_status_get(void)

This API used to get lcd int status.

8080 Usage example: if (bk_lcd_int_status_get()&I8080_OUTPUT_EOF == 1), present 8080 eof int triggerd if (bk_lcd_int_status_get()&RGB_OUTPUT_EOF == 1), present rgb eof int triggerd

返回

status value.

bk_err_t bk_lcd_int_status_clear(lcd_int_type_t int_type)

This API used to clr lcd int status.

参数

- – int_type value.

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_pixel_config(uint16_t x_pixel, uint16_t y_pixel)

This API config lcd display x size and y size.

参数

- – x_pixel user can set by any value, can be lcd size x or picture size x

y_pixel user can set by any value, can be lcd size y or picture size y

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_rgb_init(const lcd_device_t *device)

This API init the rgb lcd interface.

Set lcd display mode is rgb interface
init rgb lcd gpio
enable rgb display
enable rgb end of frame interrupt

参数

- – lcd_device_t: lcd type select from lcd_device_t

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_8080_send_cmd(uint8_t param_count, uint32_t command, uint32_t *param)

This API used send 8080 lcd init cmd.

Usage example:

#define COMMAND_1 0xf uint32_t param_command1[2] = {0xc3, 0x29}; bk_lcd_8080_send_cmd(2, COMMAND_1, param_command1);

参数

- – param_count: cmd parameter number

command: command
param: the cmd parameter

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_set_partical_display(bool en, uint16_t partial_clum_l, uint16_t partial_clum_r, uint16_t partial_line_l, uint16_t partial_line_r)

This API used for display partical area.

8080 Usage example:

#define PARTICAL_XS   101
#define PARTICAL_XE   220
#define PARTICAL_YS   101
#define PARTICAL_YE   380
bk_lcd_set_partical_display(EDGE_PARTICAL_XS, EDGE_PARTICAL_XE, EDGE_PARTICAL_YS, EDGE_PARTICAL_YE);
bk_lcd_8080_send_cmd(2, COMMAND_1, param_command1);

参数

- – partial_clum_l:

partial_clum_r:
partial_line_l:
partial_line_r:

返回

BK_OK: succeed
others: other errors.

void lcd_driver_ppi_set(uint16_t width, uint16_t height)

This API used to clr lcd int status.

参数

- – int_type value.

返回

BK_OK: succeed
others: other errors.

bk_err_t bk_lcd_set_yuv_mode(pixel_format_t input_data_format)

This API used to set lcd display data farmat.

参数

- – input_data_format value.

返回

BK_OK: succeed
others: other errors.

bk_err_t lcd_driver_init(const lcd_device_t *device)

This API used for init lcd.

Usage example:

参数

lcd_config_t –

返回

BK_OK: succeed
others: other errors.

const lcd_device_t *get_lcd_device_by_id(lcd_device_id_t id)

this api used to get lcd device interface

参数: select – lcd_device_id_t member
返回: lcd device infermation, include: .id = LCD_DEVICE_HX8282, .name = “hx8282”, .type = LCD_TYPE_RGB565, .ppi = PPI_1024X600, .rgb = &lcd_rgb .init = NULL,

const lcd_device_t **get_lcd_devices_list(void)

get lcd device list

返回

devices list

uint32_t get_lcd_devices_num(void)

get lcd device number

返回

devices number

bk_err_t lcd_driver_backlight_open(void)

this api used to open lcd backlight

参数

none –

返回

BK_OK: succeed
others: other errors.

bk_err_t lcd_driver_backlight_close(void)

this api used to close lcd backlight

返回

BK_OK: succeed
others: other errors.

bk_err_t lcd_driver_backlight_set(uint8_t percent)

this api used to set lcd backlight

参数

percent – rang from 0~100

返回

BK_OK: succeed
others: other errors.

bk_err_t lcd_driver_display_disable(void)

this api used to disable lcd display

返回

BK_OK: succeed
others: other errors.

bk_err_t lcd_driver_display_enable(void)

this api used to enable lcd display

返回

BK_OK: succeed
others: other errors.

bk_err_t lcd_driver_display_continue(void)

this api used to clear eof int and diaplay continue

返回

BK_OK: succeed
others: other errors.

bk_err_t lcd_driver_set_display_base_addr(uint32_t disp_base_addr)

this api used to set lcd display addr

参数

disp_base_addr – sram or psram

返回

BK_OK: succeed
others: other errors.

bk_err_t lcd_driver_deinit(void)

this api used to close lcd

返回

BK_OK: succeed
others: other errors.

const lcd_device_t *get_lcd_device_by_ppi(media_ppi_t ppi)

get lcd device struct by ppi

参数

lcd – ppi

返回

return true is lcd_device_t member
or not find device, return NULL.

const lcd_device_t *get_lcd_device_by_name(char *name)

get lcd device struct by device name

参数

lcd – name

返回

return true is lcd_device_t member
or not find device, return NULL.

bk_err_t bk_lcd_input_pixel_hf_reverse(bool hf_reverse)

input data halfword reverse

参数

enable – enable/disable hf_reverse

返回

BK_OK: succeed
others: other errors.

API Typedefs

Header File

lcd_types.h

Structures

struct yuv_data_t

struct lcd_rect_t

struct lcd_disp_framebuf_t

struct lcd_rgb_t

rgb interface config param

Public Members

lcd_clk_t clk: config lcd clk

rgb_out_clk_edge_t data_out_clk_edge: rgb data output in clk edge, should refer lcd device spec

uint16_t hsync_back_porch: rang 0~0x3FF (0~1023), should refer lcd device spec

uint16_t hsync_front_porch: rang 0~0x3FF (0~1023), should refer lcd device spec

uint16_t vsync_back_porch: rang 0~0xFF (0~255), should refer lcd device spec

uint16_t vsync_front_porch: rang 0~0xFF (0~255), should refer lcd device spec

uint8_t hsync_pulse_width: rang 0~0x3F (0~7), should refer lcd device spec

uint8_t vsync_pulse_width: rang 0~0x3F (0~7), should refer lcd device spec

struct lcd_mcu_t

mcu interface config param

Public Members

lcd_clk_t clk: config lcd clk

void (*set_display_area)(uint16 xs, uint16 xe, uint16 ys, uint16 ye): if lcd size is smaller then image, and set api bk_lcd_pixel_config is image x y, should set partical display

struct lcd_qspi_t: qspi interface config param

struct lcd_spi_t: spi interface config param

struct lcd_device_t

Public Members

lcd_device_id_t id: lcd device type, user can add if you want to add another lcd device

char *name: lcd device name

lcd_type_t type: lcd device hw interface

media_ppi_t ppi: lcd device x y size

pixel_format_t src_fmt: source data format: input to display module data format(rgb565/rgb888/yuv)

pixel_format_t out_fmt: display module output data format(rgb565/rgb666/rgb888), input to lcd device,

const lcd_rgb_t *rgb: RGB interface lcd device config

const lcd_mcu_t *mcu: MCU interface lcd device config

const lcd_qspi_t *qspi: QSPI interface lcd device config

const lcd_spi_t *spi: SPI interface lcd device config

void (*init)(void): lcd device initial function

bk_err_t (*lcd_off)(void): lcd off

Macros

USE_LCD_REGISTER_CALLBACKS

Type Definitions

typedef void (*lcd_isr_t)(void)

Enumerations

enum lcd_device_id_t

Values:

enumerator LCD_DEVICE_UNKNOW

enumerator LCD_DEVICE_ST7282: 480X270 RGB

enumerator LCD_DEVICE_HX8282: 1024X600 RGB

enumerator LCD_DEVICE_GC9503V: 480X800 RGB

enumerator LCD_DEVICE_NT35510: 480X854 RGB

enumerator LCD_DEVICE_H050IWV: 800X480 RGB

enumerator LCD_DEVICE_MD0430R: 800X480 RGB

enumerator LCD_DEVICE_MD0700R: 1024X600 RGB

enumerator LCD_DEVICE_ST7701S_LY: 480X480 RGB

enumerator LCD_DEVICE_ST7701S: 480X480 RGB

enumerator LCD_DEVICE_ST7701SN: 480X480 RGB

enumerator LCD_DEVICE_AML01: 720X1280 RGB

enumerator LCD_DEVICE_ST7796S: 320X480 MCU

enumerator LCD_DEVICE_NT35512: 480X800 MCU

enumerator LCD_DEVICE_NT35510_MCU: 480X800 MCU

enumerator LCD_DEVICE_ST7789V: 170X320 MCU

enumerator LCD_DEVICE_SH8601A: 454X454 QSPI

enumerator LCD_DEVICE_ST77903_WX20114: 400X400 QSPI

enumerator LCD_DEVICE_ST77903_SAT61478M: 400X400 QSPI

enumerator LCD_DEVICE_ST77903_H0165Y008T: 360X480 QSPI

enumerator LCD_DEVICE_SPD2010: 412X412 QSPI

enumerator LCD_DEVICE_ST7796U: 320X480 SPI

enumerator LCD_DEVICE_GC9D01: 160X160 SPI

enum lcd_type_t

Values:

enumerator LCD_TYPE_RGB: lcd hardware interface is parallel RGB interface

enumerator LCD_TYPE_RGB565: lcd device output data hardware interface is RGB565 format

enumerator LCD_TYPE_MCU8080: lcd device output data hardware interface is MCU 8BIT format

enumerator LCD_TYPE_QSPI: lcd device hardware interface is QSPI interface

enumerator LCD_TYPE_SPI: lcd device hardware interface is SPI interface

enum lcd_int_type_t

Values:

enumerator RGB_OUTPUT_EOF: reg end of frame int status

enumerator RGB_OUTPUT_SOF: reg display output start of frame status

enumerator I8080_OUTPUT_SOF: 8080 display output start of frame status

enumerator I8080_OUTPUT_EOF: 8080 display output end of frame status

enumerator DE_INT

enumerator FRAME_INTERVAL_INT

enum frame_delay_unit_t

Values:

enumerator DCLK_UNIT

enumerator HSYNC_UNIT

enumerator VSYNC_UNIT

enumerator NONE

enum lcd_clk_t

rgb lcd clk select, infulence pfs, user should select according to lcd device spec

Values:

enumerator LCD_80M

enumerator LCD_64M

enumerator LCD_60M

enumerator LCD_54M

enumerator LCD_45M

enumerator LCD_40M

enumerator LCD_35M

enumerator LCD_32M

enumerator LCD_30M

enumerator LCD_26M

enumerator LCD_24M

enumerator LCD_22M

enumerator LCD_20M

enumerator LCD_17M

enumerator LCD_15M

enumerator LCD_12M

enumerator LCD_10M

enumerator LCD_9M

enumerator LCD_8M

enumerator LCD_7M

enum lcd_qspi_clk_t

Values:

enumerator LCD_QSPI_80M

enumerator LCD_QSPI_64M

enumerator LCD_QSPI_60M

enumerator LCD_QSPI_53M

enumerator LCD_QSPI_48M

enumerator LCD_QSPI_40M

enumerator LCD_QSPI_32M

enumerator LCD_QSPI_30M

enum rgb_out_clk_edge_t

rgb data output in clk rising or falling

Values:

enumerator POSEDGE_OUTPUT: output in clk falling

enumerator NEGEDGE_OUTPUT: output in clk rising

enum data_format_t

Values:

enumerator ARGB8888: ARGB8888 DMA2D color mode

enumerator RGB888: RGB888 DMA2D color mode

enumerator RGB565: RGB565 DMA2D color mode

enumerator YUYV

enum lcd_backlight_default_ctrl_t

Values:

enumerator LCD_BL_DEFAULT_CLOSE

enumerator LCD_BL_DEFAULT_OPEN
